Description

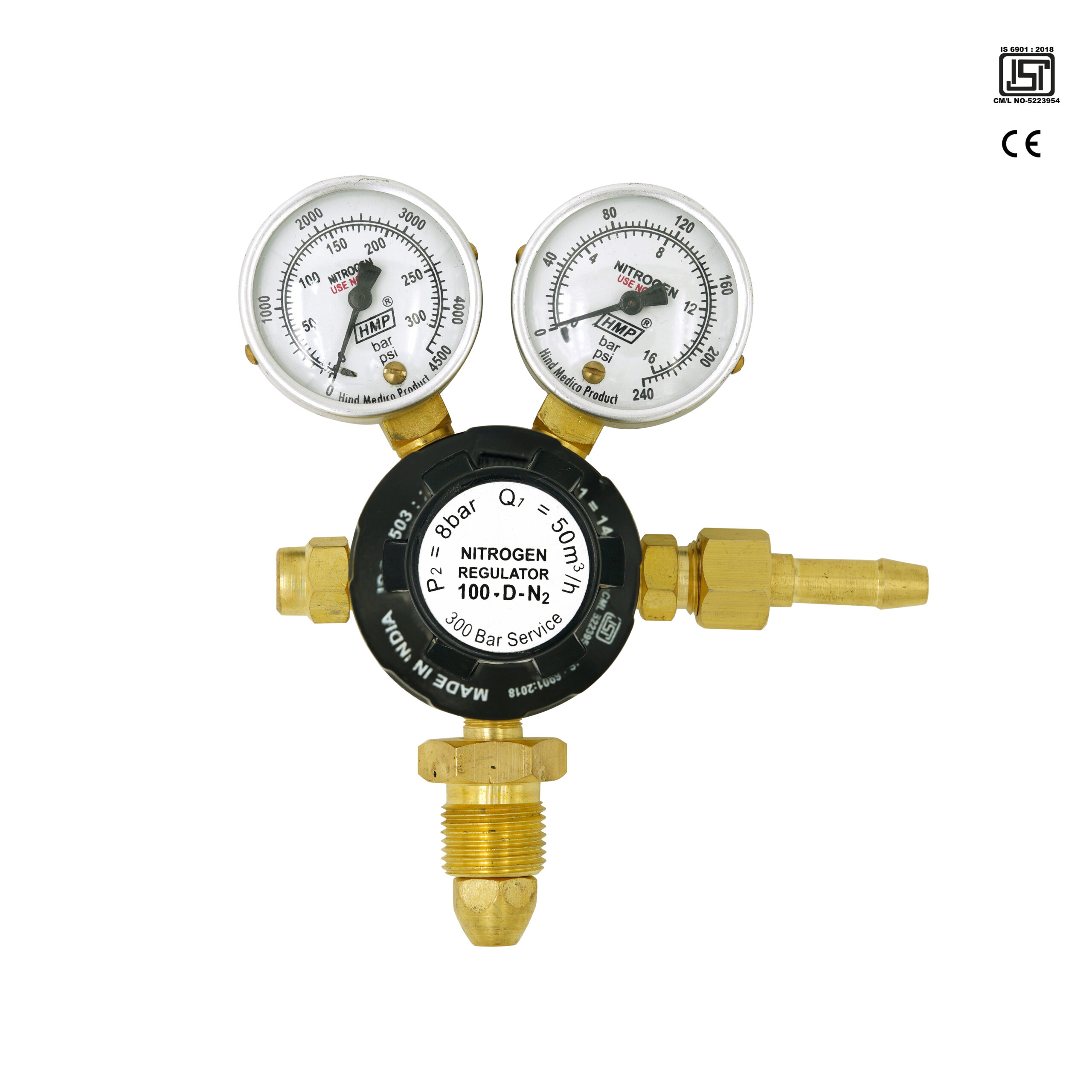

100-D-N2 Single Stage Double Gauge Nitrogen Gas Pressure Regulator

The 100-D-N2 Single Stage Double Gauge Nitrogen Gas Pressure Regulator is designed for safe, accurate, and controlled regulation of Nitrogen (N₂) gas from high-pressure gas cylinders to the required working pressure.

Its single-stage pressure reduction system reduces high cylinder pressure to a suitable delivery pressure, while the double gauge configuration allows the operator to monitor both the cylinder pressure and the outlet working pressure during operation.

Built for industrial, laboratory, testing, and maintenance applications, the 100-D-N2 Nitrogen Regulator provides smooth pressure adjustment, reliable gas delivery, and easy pressure monitoring. It is suitable for professional applications where dependable Nitrogen gas pressure control is required.

Key Features

• Designed specifically for Nitrogen (N₂) gas
• Single-stage pressure regulation
• Double pressure gauge configuration
• High-pressure gauge for monitoring cylinder pressure
• Delivery gauge for monitoring outlet pressure
• Smooth and convenient pressure adjustment
• Controlled and stable Nitrogen gas delivery
• Easy-to-read pressure gauges
• Strong and durable construction
• Suitable for industrial and laboratory use
• Designed for use with compatible Nitrogen cylinders and gas systems

How to Use

Before installation, ensure that the Nitrogen cylinder valve is fully closed.

Connect the 100-D-N2 Nitrogen Gas Pressure Regulator securely to the gas cylinder using the correct compatible cylinder connection. Keep the pressure adjustment mechanism in the released position before opening the cylinder valve.

Slowly open the Nitrogen cylinder valve and check the cylinder pressure on the high-pressure gauge. Gradually adjust the regulator until the required working pressure is shown on the delivery pressure gauge.

Check all gas connections for leakage using an approved leak-testing method before operation. After completing the work, close the cylinder valve, safely release the remaining downstream pressure, and return the adjustment mechanism to the released position.

Where It Is Used

The 100-D-N2 Nitrogen Gas Pressure Regulator is commonly used in:

• Industrial Nitrogen gas systems
• Pressure testing applications
• Pipeline purging
• Tank and vessel inerting
• HVAC and refrigeration servicing
• Leak testing applications
• Laboratory gas supply systems
• Chemical and process industries
• Food and beverage processing
• Electronics manufacturing
• Metal fabrication and heat treatment
• Manufacturing and engineering industries
• Research and development facilities

Product Application

The 100-D-N2 regulator is suitable for factories, laboratories, maintenance departments, engineering companies, refrigeration technicians, process industries, and manufacturing facilities requiring controlled Nitrogen gas delivery from high-pressure cylinders.

For reliable operation, the regulator should be used with compatible Nitrogen-rated cylinder connections, hoses, valves, fittings, and downstream equipment.
