  MIG/ARC 630 IJ

  MODEL: MIG/ARC  630 IJ   3 Phase  IGBT Module

   SPECIFICATION :

  INPUT VOLTAGE (v)                        AC415v±15%
  INPUT POWER CAPACITY (KVA)              35
  OUTPUT VOLTAGE ADJUSTMENT (V)     44
  OUTPUT CURRENT RANGE (A)                 80 – 630
  WIRE FEEDER SPEED (MTR/MIN)            3 – 24
  POWER FACTOR                                         0.93
  NET WEIGHT  (KG)                                     44
  DIMENSION (INCH)                                   25.5 X 12 X 25
  MIG WIRE DIAMETER  (MM)                  0.8 – 1.6

  Read more
•

  Read more

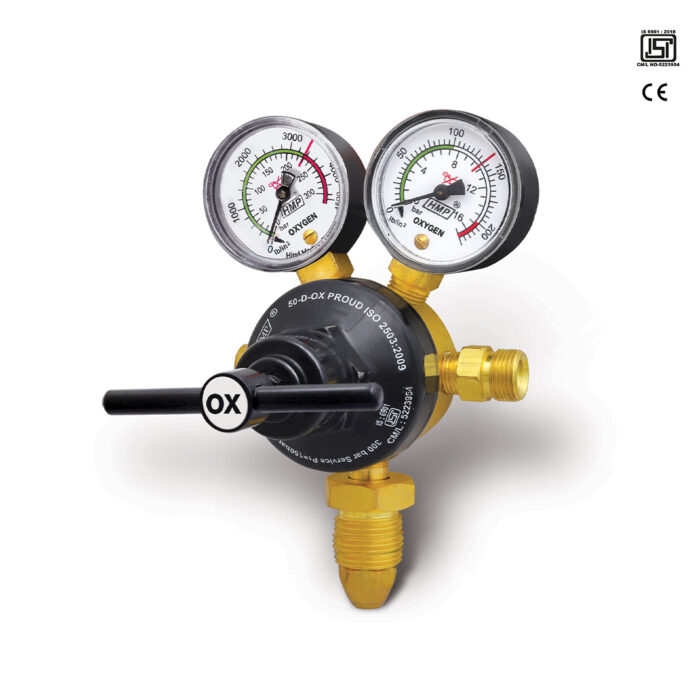

  50-D-OX-PROUD

  Single Stage Double Gauge Oxygen Gas Pressure Regulator

  • Brass forging body
  • Aluminum pressure die-casting bonnet
  • Neoprene rubber diaphragm
  • SS net inlet filter
  • Dual safety pressure gauges
  • In-built safety valve
  • Use for Welding, Cutting, Heating & Brazing
  • ISI Mark : IS 6901/ ISO 2503 & CE certified



  Read more
•

  Read more

  INDUSTRIAL PRESSURE GAUGE

  INDUSTRIAL GAS PRESSURE GAUGES USED IN WELDING & CUTTING  INSTRUMENT

  AS PER ISO 5171

  Industrial Gas Pressure Gauges :

  • Materials : Aluminium die casting / MS case
  • SS & Brass bourdon tube
  • Scaling in bar & psi unit
  • Safety devices or venting are incorporate in the case
  • Dimension : Normal dial size 50 mm
  • Accuracy : ± 2% FSD (Full- scale deflection)
