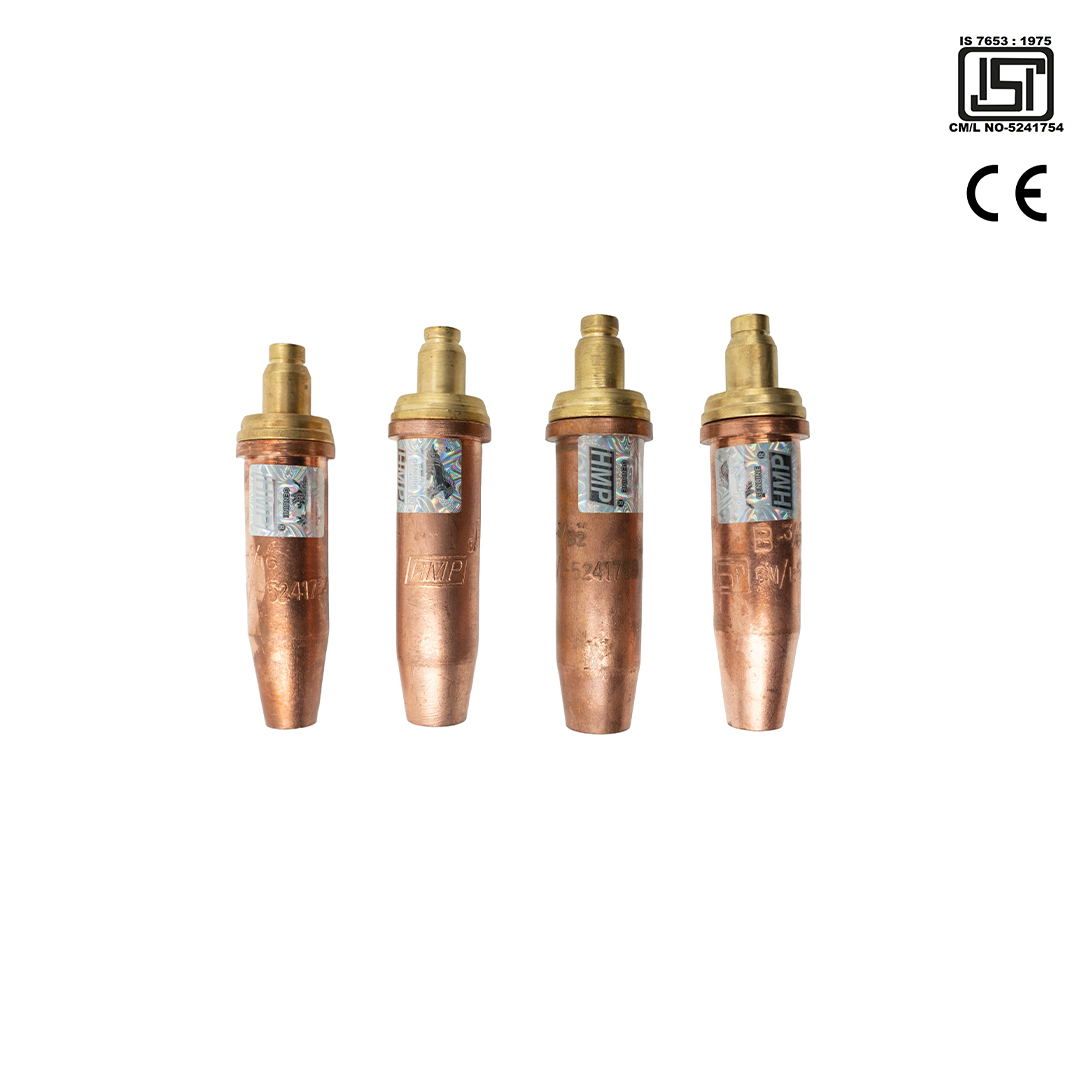

B TYPE

Related products

•

  Read more

  MIG/ARC 400 IJ

  MODEL: MIG/ARC  400 IJ   3 Phase  IGBT Module

   SPECIFICATION :

  INPUT VOLTAGE (v)                                    AC415v±15%
  INPUT POWER CAPACITY (KVA)              14
  OUTPUT VOLTAGE ADJUSTMENT (V)     31.5
  OUTPUT CURRENT RANGE (A)                 50 – 400
  WIRE FEEDER SPEED (MTR/MIN)            3 – 24
  POWER FACTOR                                         0.93
  DUTY CYCLE (%)                                          60
  INSULATION GRADE                                         F
  NET WEIGHT  (KG)                                     36
  DIMENSION (INCH)                                   21.5 X 11 X 21.5
  MIG WIRE DIAMETER  (MM)                  0.8 – 1.2

  Read more
•

  Read more

  MIG/ARC 630 IJ

  MODEL: MIG/ARC  630 IJ   3 Phase  IGBT Module

   SPECIFICATION :

  INPUT VOLTAGE (v)                        AC415v±15%
  INPUT POWER CAPACITY (KVA)              35
  OUTPUT VOLTAGE ADJUSTMENT (V)     44
  OUTPUT CURRENT RANGE (A)                 80 – 630
  WIRE FEEDER SPEED (MTR/MIN)            3 – 24
  POWER FACTOR                                         0.93
  NET WEIGHT  (KG)                                     44
  DIMENSION (INCH)                                   25.5 X 12 X 25
  MIG WIRE DIAMETER  (MM)                  0.8 – 1.6

  Read more
•

  Read more

  TH 1 MINI

  ELECTRODE DRYING OVEN /FLUX OVEN

  • Electrode drying ovens are used for drying electrodes and ensure longer life of the electrode
  • Digital display / non digital temperature controller, with relay system
  • Especially suitable for re-drying the electrode having excess moisture than the constant capacity

  of the flux or electrode

  Read more
