Description

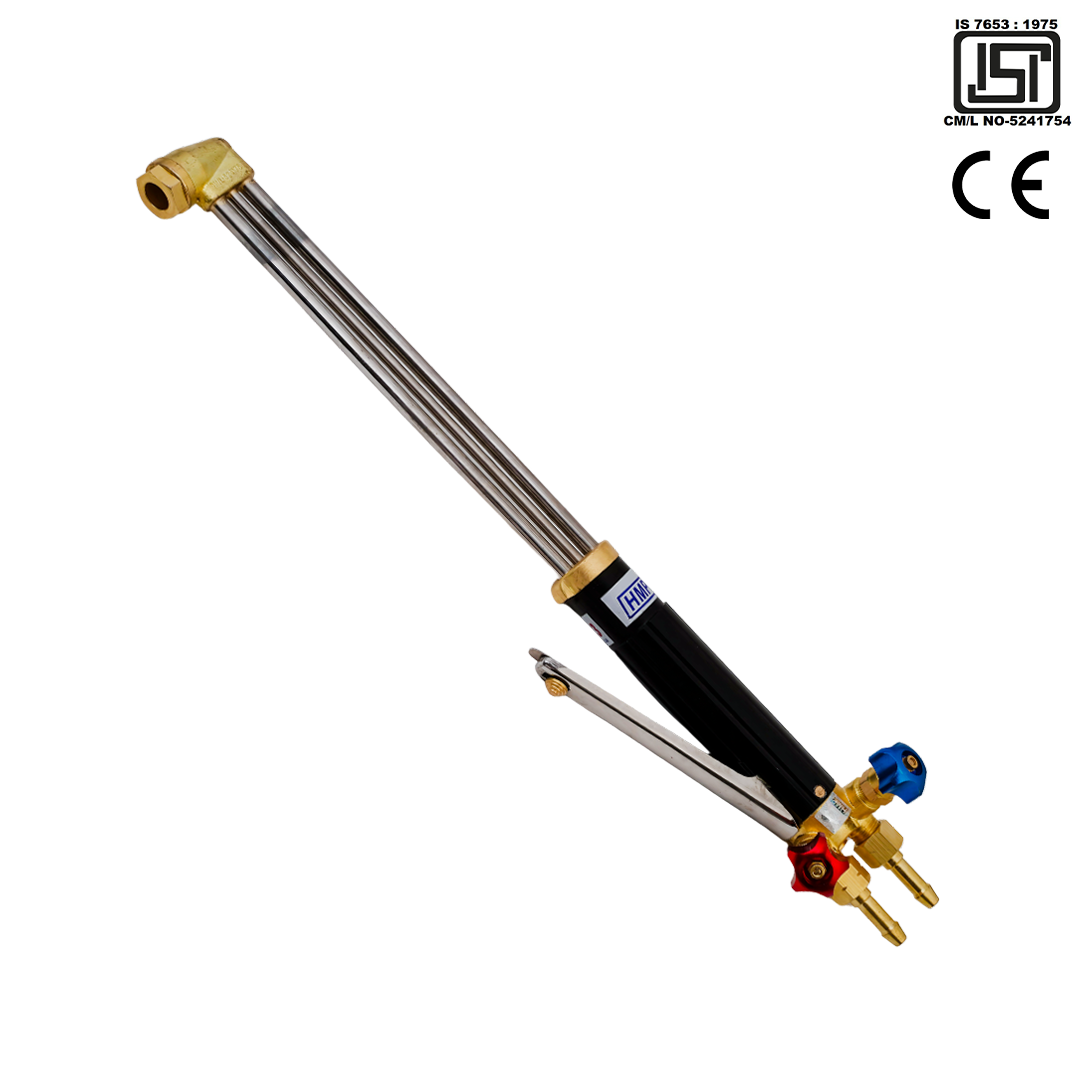

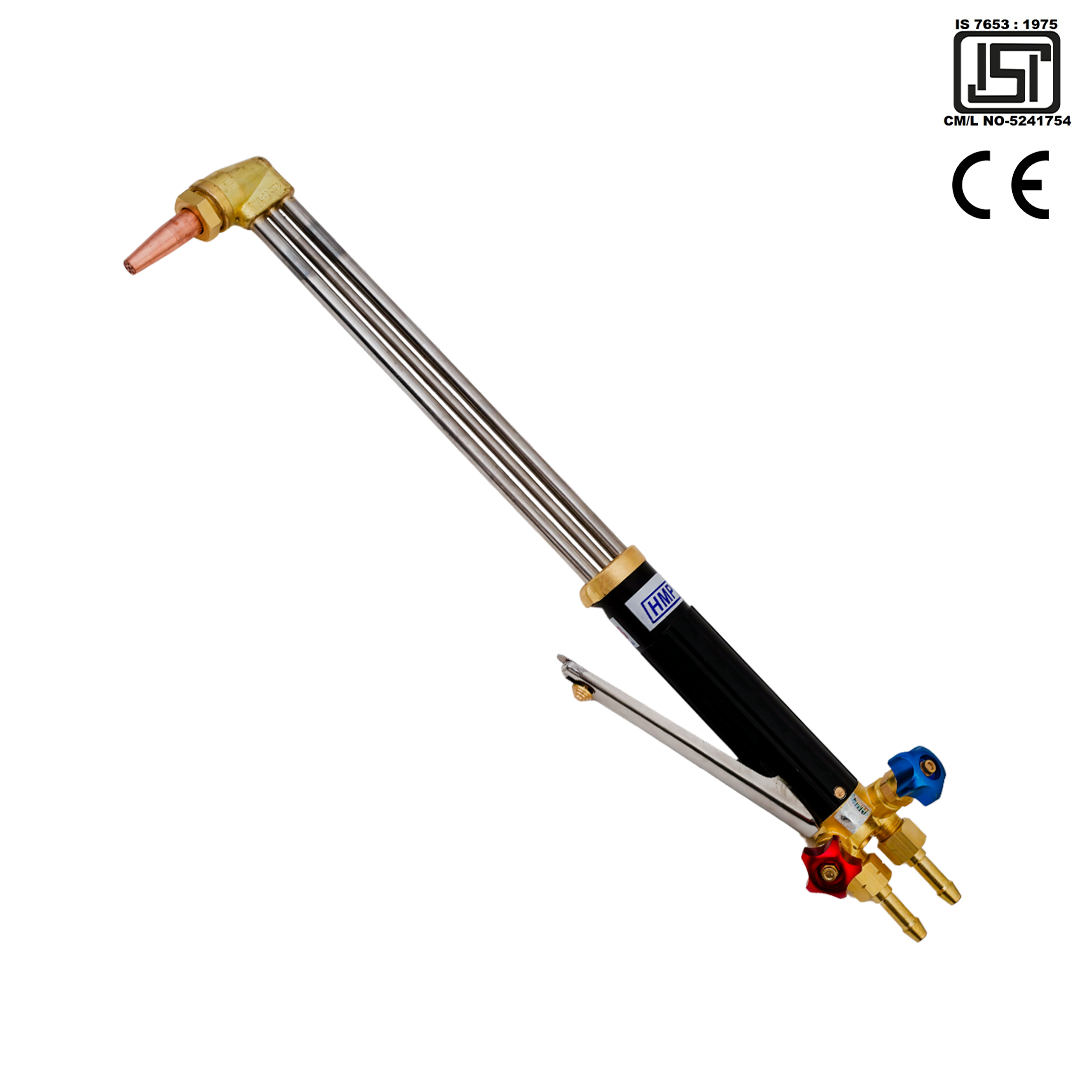

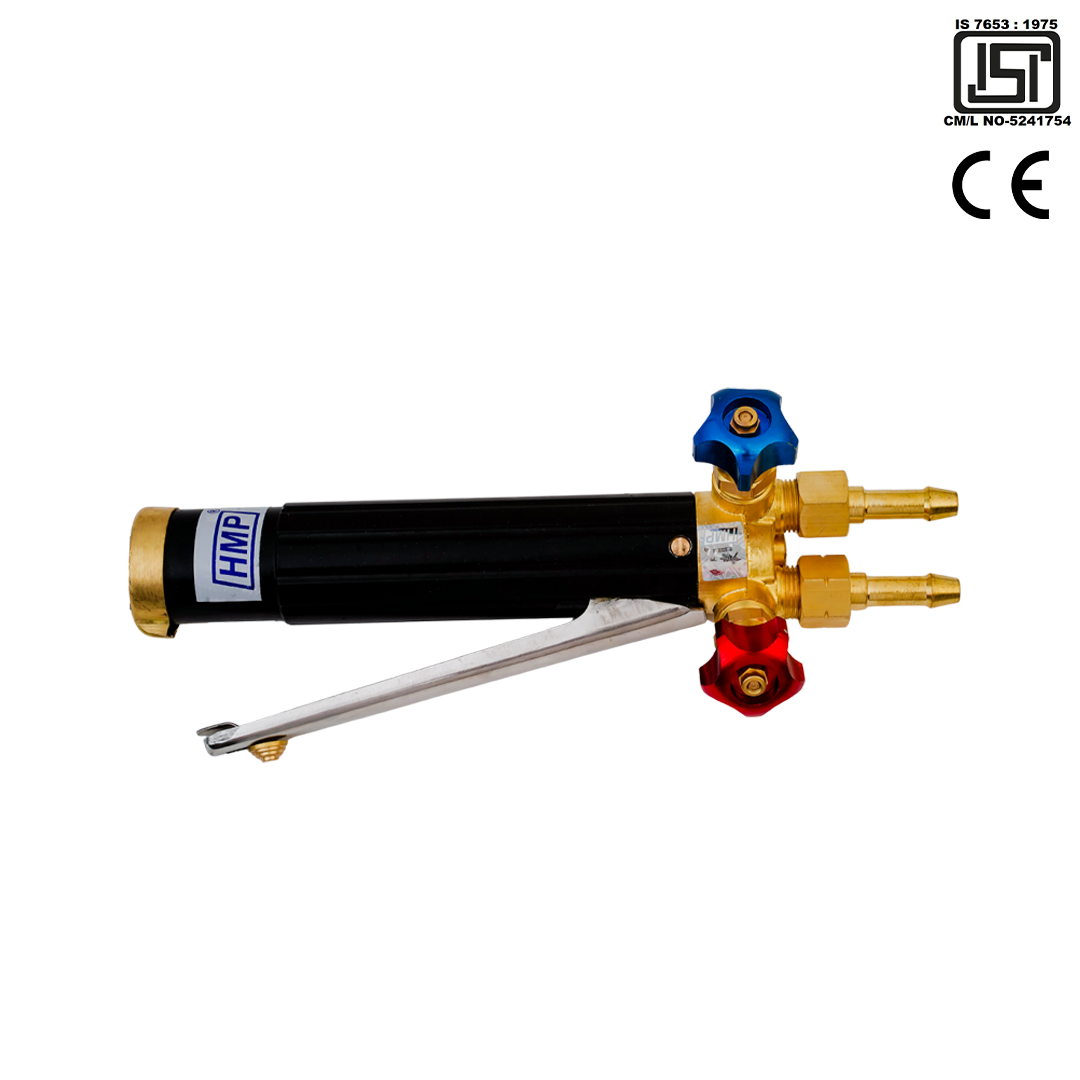

PARTOGEN-3 Manual Cutting Blowpipe (Torch)
The PARTOGEN-3 Manual Cutting Blowpipe (Torch) is a heavy-duty industrial gas cutting torch designed for manual oxy-fuel cutting of mild steel and other suitable ferrous metals. It is built to provide controlled gas mixing, stable flame performance, and reliable cutting action for professional fabrication and engineering work.
The PARTOGEN-3 features a three-pipe nozzle-mixing design, where oxygen and fuel gas are delivered separately through the torch body and mixed at the cutting nozzle. This design provides efficient gas delivery and controlled flame formation for demanding manual cutting applications.
Its durable construction, comfortable handling, and precise gas control make it suitable for workshops, construction sites, maintenance work, structural fabrication, scrap cutting, and general industrial metal cutting.
Key Features
- Heavy-duty manual cutting blowpipe
- Three-pipe nozzle-mixing design
- Suitable for professional oxy-fuel cutting
- Separate gas delivery through the torch body
- Controlled mixing at the cutting nozzle
- Smooth and precise gas flow adjustment
- Strong and durable industrial construction
- Comfortable grip for manual operation
- Suitable for various cutting thicknesses with appropriate nozzles
- Easy nozzle replacement and maintenance
- Designed for workshop and site applications
- Suitable for regular industrial cutting operations
Three-Pipe Nozzle Mixing System
The PARTOGEN-3 uses a three-pipe system that carries the required gases separately through the blowpipe.
The gases are mixed near or within the cutting nozzle rather than inside the main body of the torch. This nozzle-mixing arrangement is designed to provide controlled preheating flames and reliable cutting oxygen delivery.
The three-pipe construction makes the torch suitable for industrial applications where stable flame control and dependable gas delivery are required.
How It Works
The PARTOGEN-3 uses oxygen and a compatible fuel gas to create the preheating flame required for oxy-fuel cutting.
The preheating flame first raises the surface of the metal to its ignition temperature. Once the required temperature is reached, the operator activates the cutting oxygen supply.
A concentrated oxygen jet reacts with the heated metal and removes the resulting metal oxides from the cutting zone, allowing the torch to produce a continuous cut.
Cutting quality depends on factors such as:
- Correct gas pressure
- Cutting nozzle size
- Metal thickness
- Torch angle
- Cutting speed
- Proper flame adjustment
How to Use
Connect the PARTOGEN-3 Cutting Blowpipe to the oxygen and compatible fuel-gas supply using the correct regulators, hoses, flashback arrestors, fittings, and safety equipment.
Install the appropriate cutting nozzle according to the thickness and type of material being cut.
Open the gas valves according to the recommended lighting procedure and adjust the preheating flame.
Position the torch at the starting point and heat the metal until it reaches the required cutting temperature.
Activate the cutting oxygen control and move the blowpipe steadily along the required cutting line.
After completing the operation, shut down the torch according to the recommended procedure and close the gas supply.
Safety Note: Gas cutting involves high-pressure oxygen, combustible fuel gases, sparks, heat, and molten metal. Always use approved regulators, flashback arrestors, non-return valves, hoses, gloves, eye protection, and other required PPE. Never allow oil or grease to come into contact with oxygen equipment.
Where It Is Used
The PARTOGEN-3 Manual Cutting Blowpipe is commonly used in:
- Mild steel plate cutting
- Structural steel fabrication
- Heavy engineering workshops
- Metal fabrication units
- Construction sites
- Shipbuilding and ship repair
- Automobile workshops
- Machinery manufacturing
- Steel structure fabrication
- Industrial maintenance
- Scrap metal cutting
- Demolition work
- Railway and infrastructure maintenance
- General engineering industries
Product Application
The PARTOGEN-3 Manual Cutting Blowpipe (Torch) is suitable for professional gas cutters, welders, fabrication companies, maintenance departments, construction contractors, engineering workshops, and industrial users requiring a durable and reliable oxy-fuel cutting torch.
Its combination of three-pipe nozzle-mixing construction, controlled gas delivery, and heavy-duty design makes it suitable for continuous professional cutting applications.
