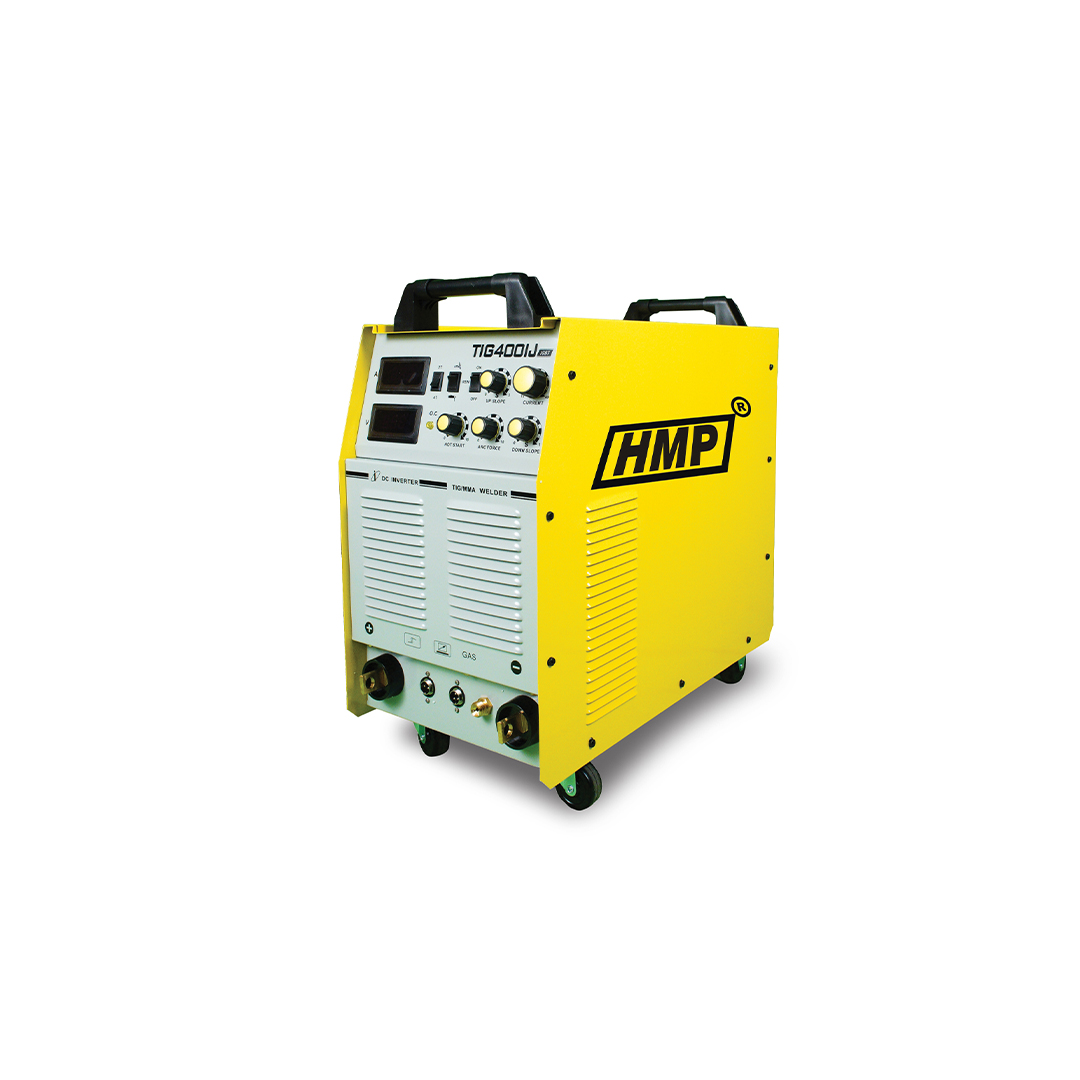

TIG/ARC 400 IJ
MODEL: TIG / ARC 400 IJ 3 Phase IGBT Modul
SPECIFICATION :
INPUT VOLTAGE (v) AC415v±15%
INPUT POWER CAPACITY (KVA) 13/18
NO-LOAD VOLTAGE (V) 68
OUTPUT CURRENT RANGE (A) 7 – 400
RATE INPUT CURRENT (A) 13.1/18.2
ARC IGNATION HF
POWER FACTOR 0.93
NET WEIGHT (KG) 30
DIMENSION (INCH) 21.5 X 11 X 21.5
PLATE THICKNESS (MM) 0.5-12.0 / 2.0-40.0
ELECTRODE SIZE (MM) 2.0 – 6.0
