Description

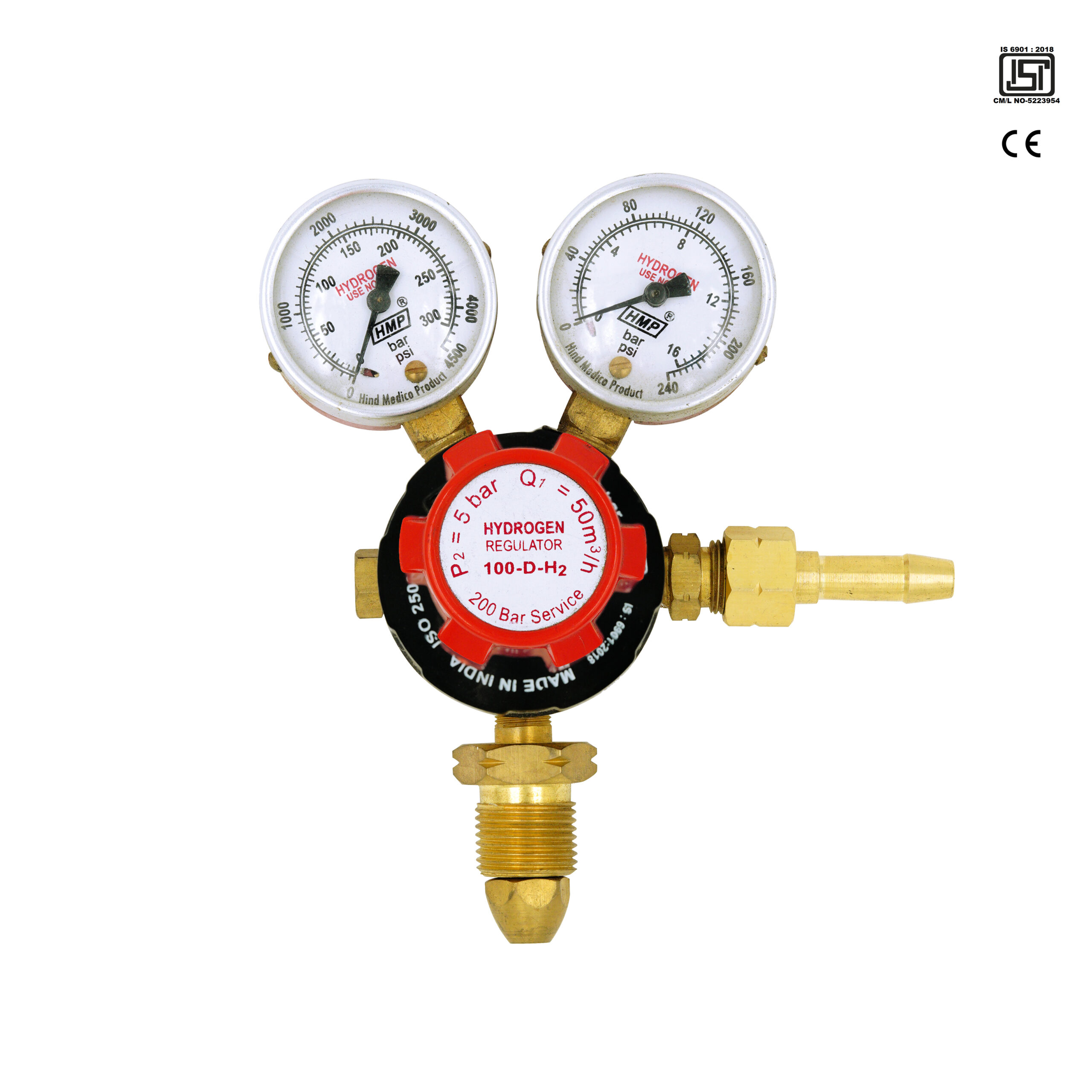

100-D-H2 Single Stage Double Gauge Hydrogen Gas Pressure Regulator

The 100-D-H2 Single Stage Double Gauge Hydrogen Gas Pressure Regulator is designed for controlled reduction and regulation of Hydrogen (H₂) gas pressure from high-pressure gas cylinders to the required working pressure.

Its single-stage pressure regulation system reduces the cylinder pressure to a suitable delivery pressure, while the double gauge configuration enables the operator to monitor both inlet cylinder pressure and outlet working pressure.

Designed for industrial and laboratory gas applications, the 100-D-H2 regulator provides convenient pressure adjustment and controlled Hydrogen gas delivery. It is suitable for applications where a reliable and dedicated Hydrogen gas pressure regulator is required.

Key Features

• Specifically designed for Hydrogen (H₂) gas
• Single-stage pressure regulation
• Double pressure gauge configuration
• High-pressure gauge for monitoring cylinder pressure
• Delivery gauge for monitoring outlet pressure
• Smooth pressure adjustment
• Controlled and consistent gas delivery
• Strong construction for industrial applications
• Easy-to-read pressure gauges
• Suitable for professional and industrial use
• Designed for connection with compatible Hydrogen gas cylinders and systems

How to Use

Before connecting the regulator, ensure that the Hydrogen cylinder valve is completely closed and that the regulator and connections are specifically suitable for Hydrogen service.

Connect the 100-D-H2 regulator securely to the Hydrogen gas cylinder using the correct cylinder connection. Keep the pressure adjustment mechanism in the released position before opening the cylinder.

Slowly open the cylinder valve and observe the inlet pressure gauge. Gradually adjust the regulator until the required working pressure is indicated on the outlet pressure gauge.

Check all connections for leakage using an approved leak-testing method before operation. After completing the work, close the cylinder valve, safely release residual pressure from the downstream system, and return the regulator adjustment mechanism to its released position.

Important: Hydrogen is highly flammable. The regulator should only be installed and operated by trained personnel in accordance with applicable gas-handling and workplace safety procedures.

Where It Is Used

The 100-D-H2 Hydrogen Gas Pressure Regulator can be used in:

• Industrial Hydrogen gas systems
• Laboratory gas supply systems
• Research and development facilities
• Chemical processing industries
• Metal processing applications
• Manufacturing plants
• Gas analysis systems
• Controlled-atmosphere applications
• Industrial testing facilities
• Engineering and scientific applications

Product Application

The 100-D-H2 regulator is suitable for industries, laboratories, research facilities, engineering companies, and manufacturing units requiring controlled delivery of Hydrogen gas from high-pressure cylinders.

It is intended for use as part of a properly designed Hydrogen gas system with compatible valves, hoses, fittings, and downstream equipment.
